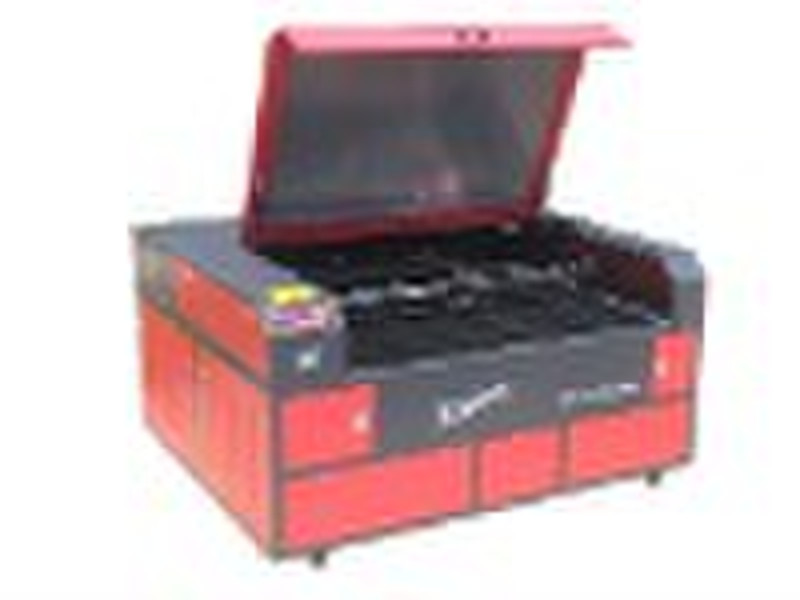

F series high speed laser engraver RJ1510

F series high speed laserengraverRJ1510 Advantage Features: 1.separate control box-electric parts protection and extended parts working life 2.strong laser beam keeps stable working position 3.Adopt flight path design, high precision, high stability, little path deviation and easy adjustment. Imported k9 reflect mirror and ZNSE focus lens, reflectance/transmittance is the best in similar accessories, with finer laser beam focus spot and more powerful cutting strength Technical Parameter: F series laserengravingmachine RJ1510X,Y cutting area1500*1000mm (59*39.4inch)Laser power60w,80w,100w,130wCutting speed0-600mm/sEngraving speed0-1200mm/sReposition accuracy±0.01mmMinimum letter sizeEnglish:1mmX Y guilding systemLinear guide railsDriving systemStepper motorsOperationsystem Windows 98, windows XP, vistaInterfaceLCD screen with USB interfaceConsuming power<=1500wCAD design softwareAvailable (optional)Supported formatBMP,HPGL(PLT),DXF,G-CODE, DST,AIWorking voltageAC220V/50/60HZ (optional 380V or 110V)Running environmentTemperature:0-45;Humidity:5%-80%warrantyOne year for whole machine except of laser tube (2500hours) and lens ∠∠laser head of slanting cutting ∠∠High division three-phase motor
